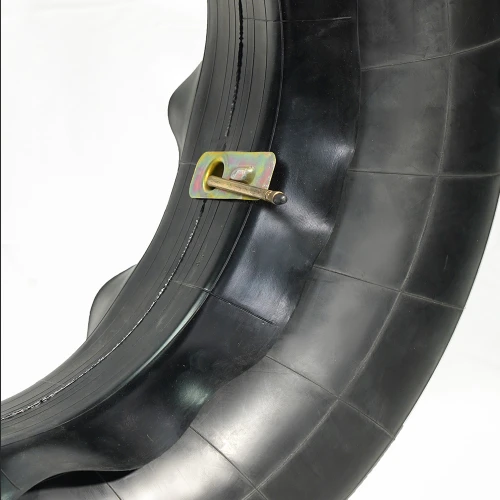

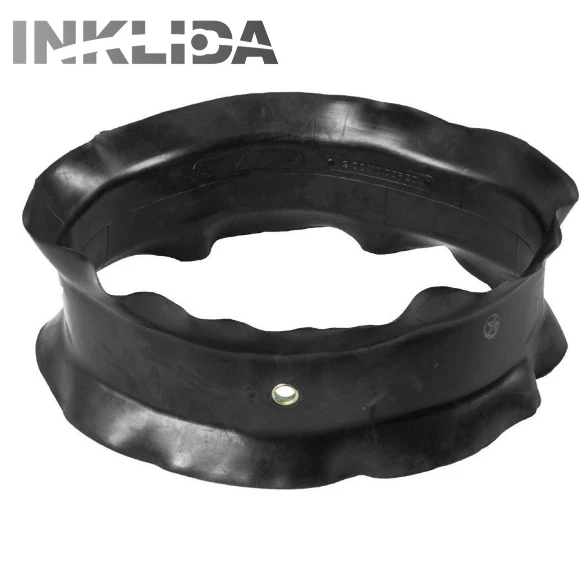

The 25 inch OTR tire flap is specially designed for construction and mining machinery, such as tires in sizes 17.5 - 25, 20.5 - 25, 23.5 - 25, and so on. One of its key advantages lies in its exceptional abrasion resistance. Made from high - quality natural rubber, it can withstand the constant friction and rough treatment that OTR tires face on uneven terrains and under heavy loads. This ensures it won't wear out easily, guaranteeing a long - lasting service life.
There are three different kinds of tensile strengths of our flap that you can choose: 8Mpa, 10Mpa and 12Mpa. I believe that you will be satisfied with the quality of our products.
Advantages:
-
1. Excellent Abrasion Resistance
25inch OTR Tyre Flap utilize special formulations and materials, possessing outstanding abrasion resistance, able to withstand heavy loads driving of engineering vehicles for extended periods, effectively prolonging the service life of tires.
-
Superb Impact Resistance
The flap has the characteristics of being thick in the middle and thin on both sides, which can be able to effectively absorb impacts and vibrations generated by engineering vehicles during driving, protecting tires and vehicles from damage.
-
Stable Performance
The surface of the OTR Tire Flap adopts anti-slip texture design, increasing friction with the ground and improving driving stability. At the same time, the OTR Tire Flap possess good elasticity and resilience, adapting to different road conditions and vehicle needs, ensuring safe driving.
-
Easy Installation and Maintenance
25inch OTR Tyre Flap are designed reasonably, with convenient and fast installation, and easy maintenance and replacement, reducing user costs.
Hot Sell Sizes
| 1300/1400-25 | 26.5-25 | 23.5-25 |
| 1200-25 | 25.5-25 | 1600-25 |
| 1400-25 | 1800-25 | 1800-25 |
| 17.5-25 | 29.5-25 | 2100-25 |
| 20.5-25 | 15.5-25 | 2400-25 |
Physical and mechanical properties and requirements of flap
| Item | Technical indicators |
| Tensile strength/MPa ≥ | 7.0 |
| Elongation at break/% ≥ | 350 |
| Permanent deformation at break/% ≤ | 40 |
| Hardness (Shore A)/degree | 60±10 |
| Tensile strength after aging/MPa ≥ | ±30% of the measured value before heat aging |
| Elongation at break after aging/% ≥ | Measurement value before heat aging +15%~-50% |
| Hardness after aging (Shore A)/degree | Measurement value before heat aging ±15 |
| Joint strength (if any)/MPa ≥ | 1.0 |
Packge and transport

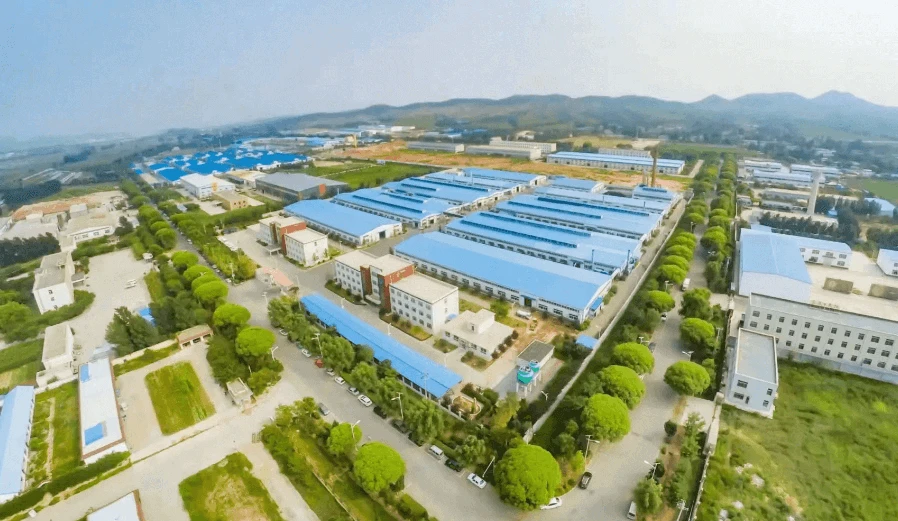

Factory Details
SHANDONG INKLIDA CO.,LTD is a professional tubes and flaps manufacture in China with the experience of 30 years. We have professional trading team and advanced production technology. INKLIDA not only provide the most competitive price and qualtiy, but also have the ability to help our customers to solve all of their problems. OEM&ODM are accepted well.
Our factory has passed ISO9001/ISO14001 Certifications, with full sizes of production lines/advanced production equipment/ professional process requirements / strong technology development/ excellent after-sales service/ adequate capacity looking forward to establish a long-time Win-Win business cooperation will all the customers from all over the world.
