Inner Tube Protector

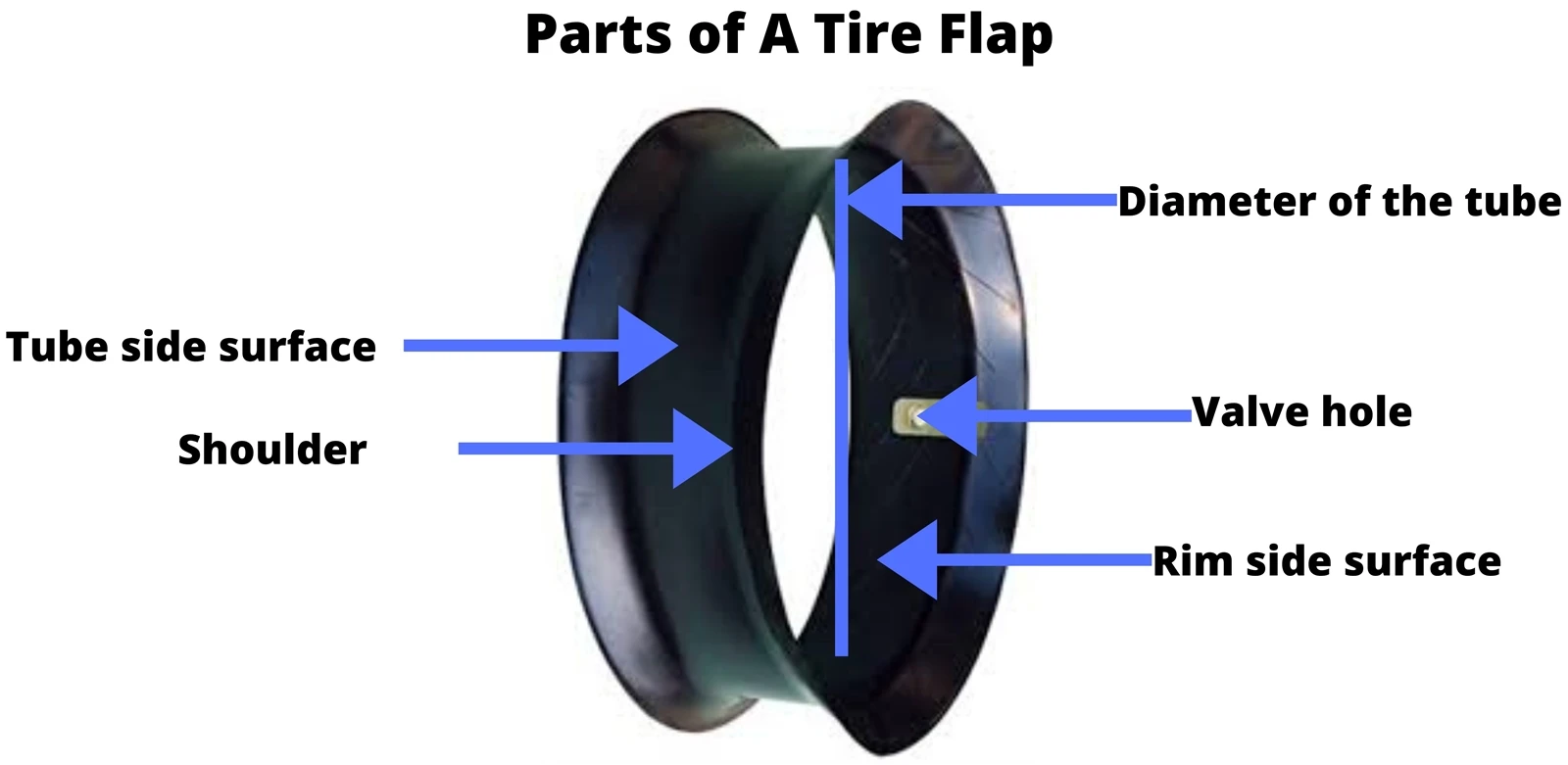

Inner tube protector is a spare part of tire, made of natural rubber selected from the world, usually consists of the follows parts:

Tube side surface

Shoulder

Diameter of the flap

Valve hole

Rim side Surface

Inner tube protector is primarily used to shield the contact surface of the inner tube from rim wear. Additionally, it can prevent the inner tube from being pinched or damaged by both the rim and the outer tire bead, thus prolonging the service life of the inner tube.

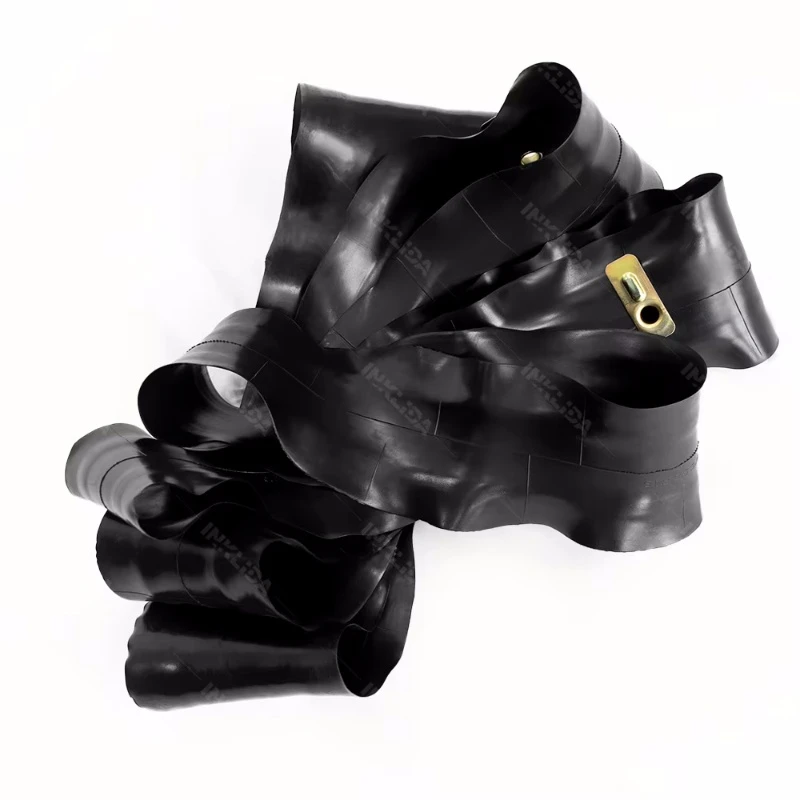

The middle part of the flap is thicker, and the two edges gradually become thinner from the inside to the outside. There is usually a center line on its outer surface, which serves as the alignment line during installation, and there is also a hole on the center line for the valve to pass through.The tire flap should possess good wear resistance, which is why most tire flaps are made of natural rubber.

Natural rubber offers numerous advantages, including its affordability and exceptional wear resistance, enabling the tire flap to maintain optimal performance over extended periods of use.

Tire flaps are usually inserted in the tire to occupy the space between the inner tube and the rim.

They are crucial in protecting the inner tube from potential damage when they come into contact or rub against the rim walls. They also protect the inner tube from getting sucked into the bead toe.

Below are important tips to consider while using tire flaps:

• Use new flaps on new tires
• Check flap for damage
• Match flap dimension with tubes/ rims
• Use flaps on rims with valve slots
