Products Description

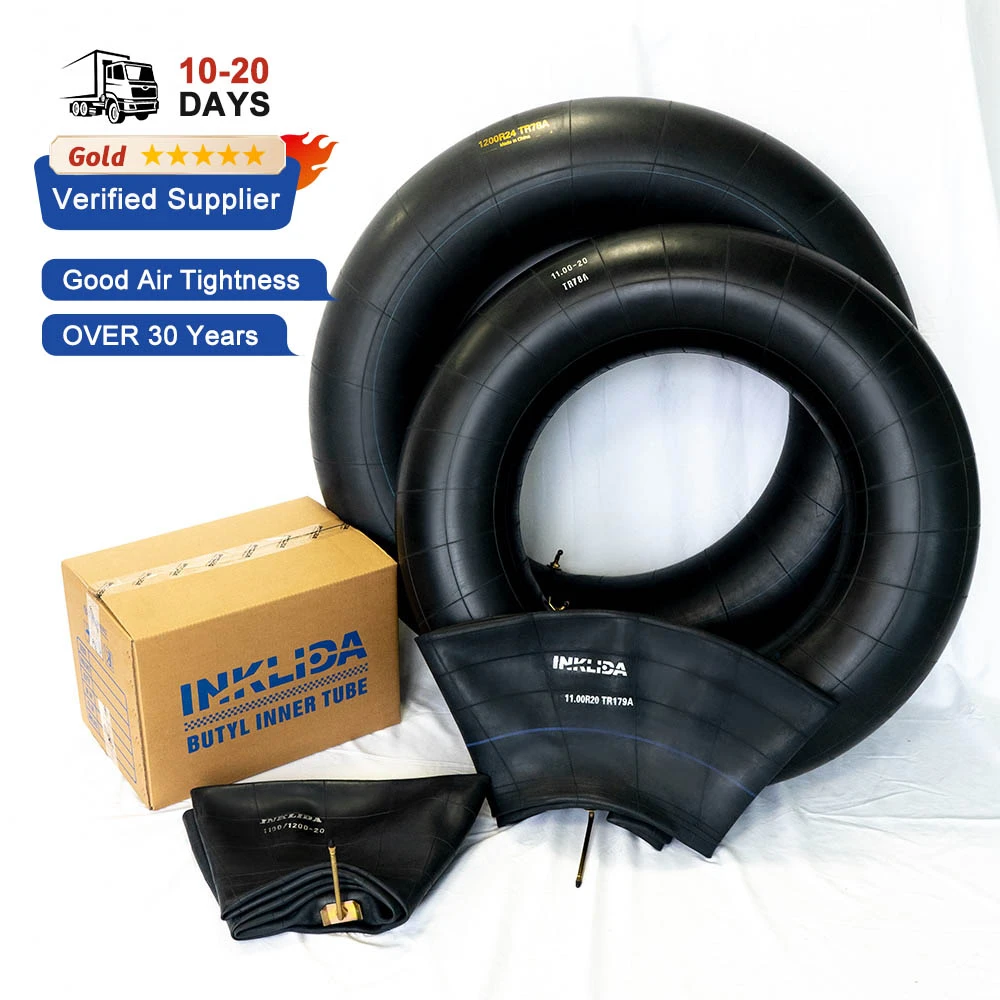

High-quality Lorry Tyre Inner Tubes
INKLIDA lorry tyre inner tubes are made of high-quality butyl rubber, a key feature of their excellent airtightness. Frequent inflation is unnecessary, significantly reducing the risk of blowouts and providing consistent, stable air pressure for trucks.
In addition, INKLIDA lorry tryre inner tubes utilize state-of-the-art manufacturing processes, resulting in excellent elasticity and strong load-bearing capacity. This ensures tires remain consistently inflated during transportation, whether navigating rugged mountain roads, muddy trails, or long highway journeys, ensuring truck drivers' safety.
| Place of Origin | shandong china | Brand | INKLIDA |
| Material | butyl rubbe | Packing | woven bag / carton |
| Tensile Strength | 8.5mpa | Popular sizes | 11.00-20 12.00-20 9.00-20 |
| Elongation | 480-550% | Technology | korean technology |

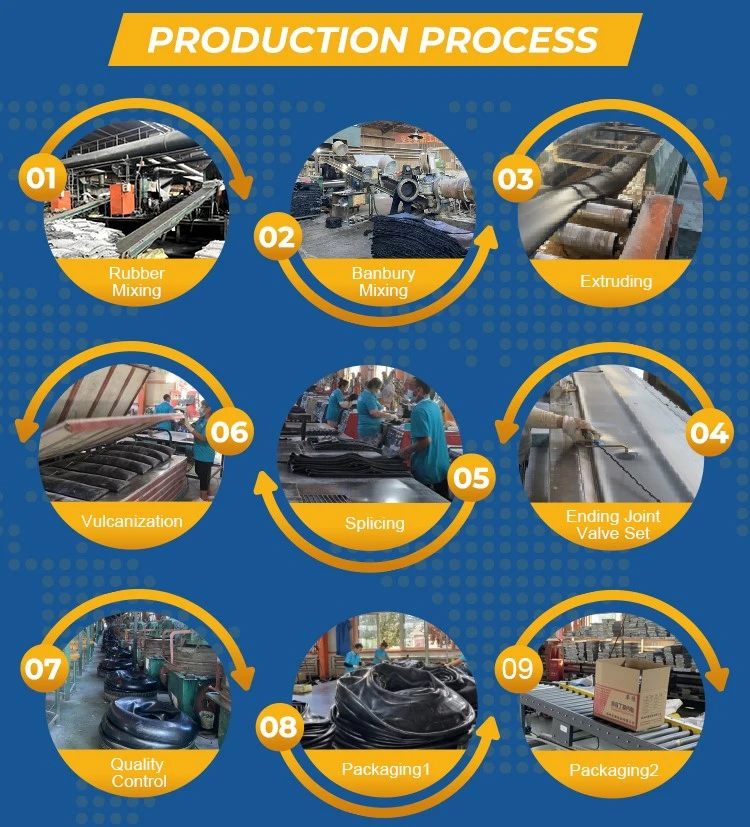

Production Process
INKLIDA Inner tube production is a precise, rigorous process where each step is vital to quality.
Raw Material Preparation: The main raw material is butyl rubber, prized for its excellent airtightness. It is supplemented with carbon black, light calcium, vulcanizing agent, and antioxidant. All materials undergo strict inspection.
Mixing: The key is achieving a uniform blend. The internal mixer uses mechanical force and optimal temperature to thoroughly mix ingredients into a stable rubber compound. Temperature, time, and addition order are critical.
Molding: After passing tests, the rubber compound is extruded into a barrel, cooled with circulating water on an integrated line, fitted with valves (which are glued in place), then cut to length per specifications.
Vulcanization: The barrel is joined in a splicing machine, inflated into a mold for shaping, then moved to a vulcanizer mold. High temperatures alter the rubber's molecular structure, ensuring the innertube has stable shape, elasticity, and durability.
Quality Inspection and Packaging: Post-vulcanization, innertubes undergo 24-hour inflation checks for leaks, proper dimensions, and appearance. Qualified ones are packed into inner bags, then boxed by specification, finishing production and ready for shipment.
One-stop Inner Tube Factory in China
Send your inquiry to us and experience the transformative power it can have on your business or brand.
